Guangdong Elieken Electronic Technology Co.,Ltd.
Model No.: G8-8559U
Place Of Origin: China
Product Status: New, Used, Refurbished
Panel Type: Ips
Warranty Period (years): 3-Year
Graphics Card Type: Integrated Card
Certification: Fcc, Ce, Rohs
Colour: White, Black
Display Type: Lcd, None
Use: Business, Industrial, Educational
Processor Brand: Amd, Intel
Hard Disk Type: Ssd, Ssd+Hdd
Transportation: Ocean,Land,Air
Port: GZ
Payment Type: T/T
Incoterm: FOB

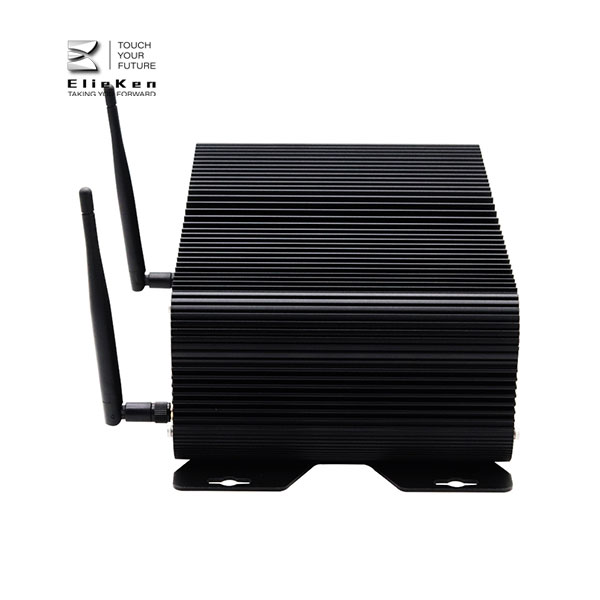

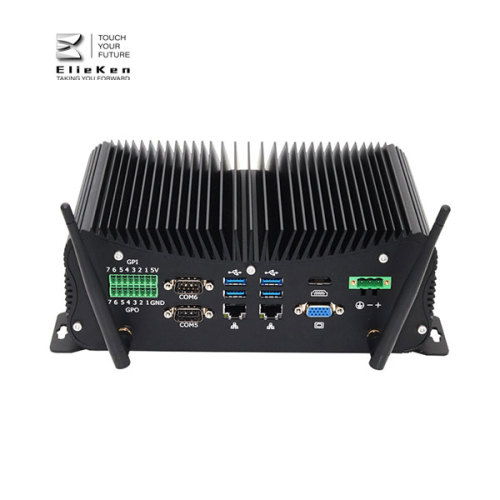

Industrial Router Intel Mini Pc Case Dual Lan
The Industrial Router Mini Computer, the compact and powerful solution for all your networking needs. This innovative device combines the functionality of a router and a Mini Cpu computer, providing you with unparalleled performance and convenience.
With its industrial-grade design, this router mini computer is built to withstand harsh environments and deliver reliable connectivity. Whether you're in a factory, warehouse, or any other industrial setting, you can trust this device to keep your network up and running smoothly.
Equipped with advanced networking capabilities, this mini computer offers fast and stable internet connections. It supports multiple protocols, including Ethernet, Wi-Fi, and cellular networks, ensuring seamless connectivity across various devices and locations.

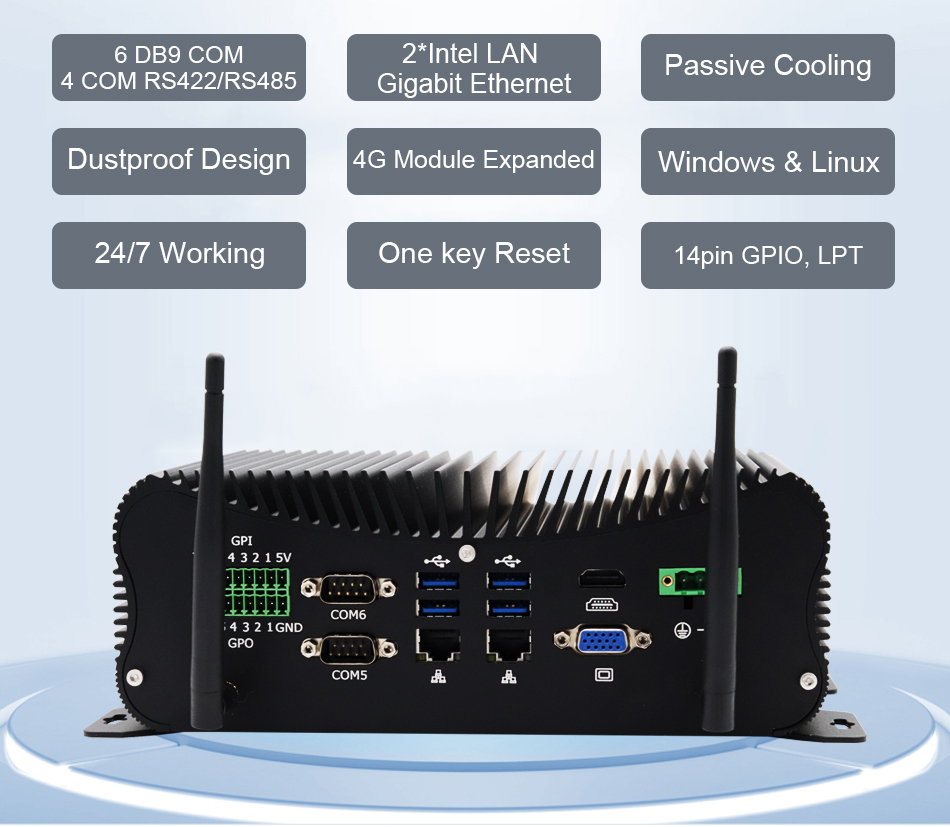

Industrial Fanless Computer Specifications:
| Basic Information: | |
| CPU | Onboard Intel 6th/7th/8th Gen Core i3/i5/i7 CPU Optional(can be customized in bulk) Onboard Intel Core i7-8559u(On-Hand) |
| TDP | Refer to CPU |
| BIOS | American Megatrends Inc. |
| Chipset | Refer to CPU |
| Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB |
| OS | Windows 7/Windows 8/Windows 10/Linux, WES7/10 |
| PXE | YES |
| Audio | Intel High Definition Audio Controller |
| Network | Intel(R) i210/i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
| Video | Refer to CPU |

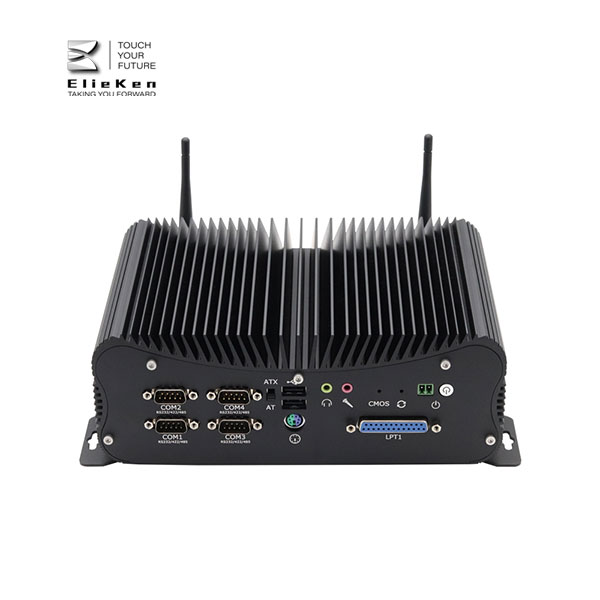

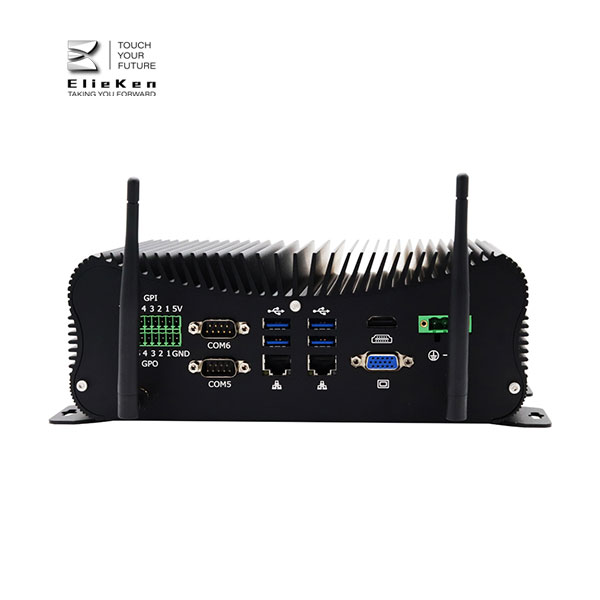

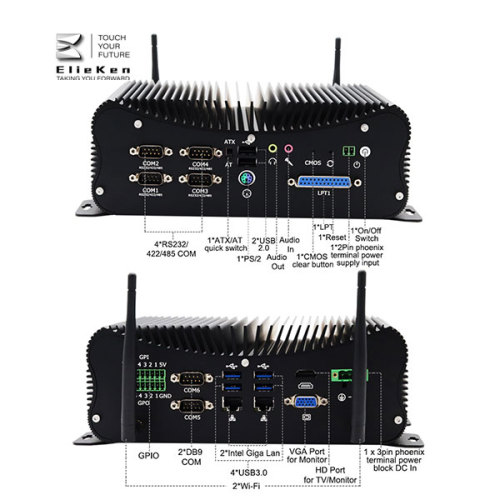

| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 3pin phoenix terminal power supply input, support 9~36V |
| Button | 1 x DIP Switch, support ATX/AT boot mode |
| USB | 4 x USB3.0, 2 x USB2.0 |
| PS/2 | 1 x PS/2(keyboard and mouse 2 in 1) |
| Display | 1 x VGA, 1 x HDMI |
| LAN | 2 x Intel GbE RJ45 LAN |
| COM | 6 x DB9 COM(4xCOM support RS422/RS485) |
| GPIO | 1 x GPIO( 7pin input, 7pin output) |
| LPT | 1 x LPT |
| Audio | 1 x MIC, 1 x SPK |
| SIM | 1 x embedded SIM card slot onboard |
| Others | 1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input |
| Storage | |
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x M.2 slot for NVME 2280 SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Wi-Fi | |
| Module | 1 x mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module 1 x Extended IO, support LPC, USB, PCIE |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +9V~+36V, recommend 12V/5A |
| Operating Temperature | -20/+60Centigrade |
| Storage Temperature | -30/+70 Centigrade |
| Storage Humidity | 10%~90%@30 Centigrade (non-condensing) |
| Product Dimension & Details | |

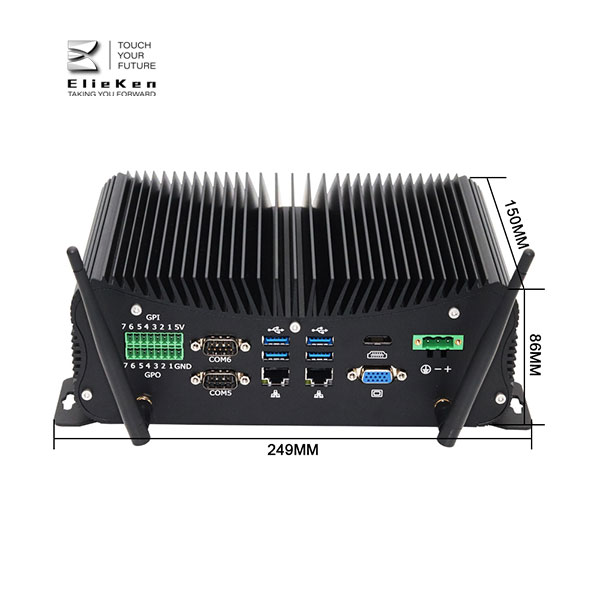

| Size | 249*150*86mm |
| Weight | NW 2.2KG, GW 3.5KG |
| Shell | Black color aluminum alloy(any customized color for bulk order) |
| Mounting | 4 mounting holes on case |
| Cooling Mode | Fanless |
| Functions | Watchdog, One key reset, AWAL, RTC, WOL(ATX mode) |
| Package Content | |

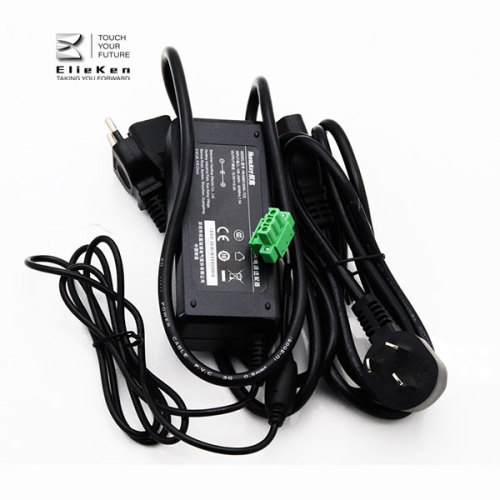

| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
| Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
